GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Name: GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
Brand: YUANTONG
Price: 1 USD

Quality GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable for sale

Brand Name : YUANTONG

Model Number : GJXH-2B6A2

Certification : ISO

Place of Origin : China

Supply Ability : 500KM/day

Delivery Time : 3-4 work days

Packaging Details : Packed in cartons and pallets

Installation Method : Indoor

Reinforcing parts : Phosphated steel wire 0.42

Minimum bending radius : Dynamic 30mm Static 15mm

Optical cable size : 2.0mm*3.0mm

Optical cable length : 1000m

Optical cable color : Black

Fiber Color : blue orange

Shape : Bow Shape

Packing : drum with carton

Crush Resistance : 500N/100mm

Optical cable sheath : LSZH/pvc

Contact Now

Product Description:GJXH-2B6a2 Metal reinforcing components, LSZH outer sheath, butterfly-shaped introduction optical cable.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Laying method:Indoor wiring, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Application scope: Suitable for FTTX system wiring, as well as prefabricated pigtails, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Execution standard: YD/T 1997-2022 Butterfly-shaped introduction Optical cable for Access networks.

Product features:

① Special flexible optical fibers provide large bandwidth and excellent communication transmission characteristics;

② Two parallel FRP or steel wires have excellent compressive resistance, protecting the optical fiber.

③ The unique groove design makes it easy to separate, convenient to join, and simplifies installation and maintenance.

④ Small outer diameter, light weight, simple structure, strong practicality and affordable price;

⑤ Most sheath materials adopt low smoke zero halogen (LSZH) flame-retardant outer sheaths, with smooth outer skins that are environmentally friendly and odorless.

⑥ Butterfly-shaped introduction optical cables are the best choice for the wiring optical cables of FTTX fiber-to-the-home systems.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

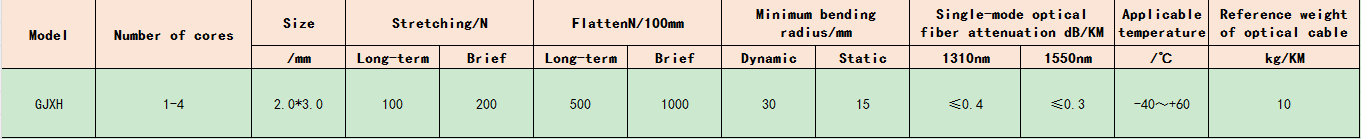

Technical parameters:

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable Images
